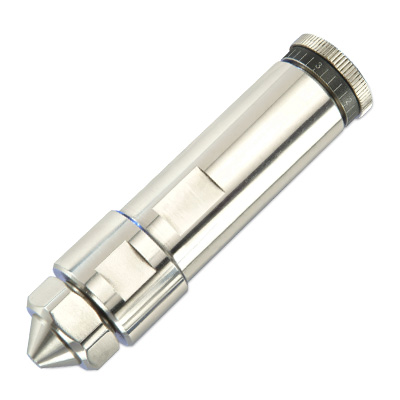

SV1000SS Adjustable Stainless Steel Spray Dispensing Valve

The SV1000SS Adjustable Stainless Steel Spray Dispensing Valve provides close tolerance spray dispensing of fluids of up to 1000 cps. The SV1000SS is constructed of stainless steel to prevent corrosion from volatile materials. With a spray angle of 12 degrees and an operating frequency of 200 cycles/min, the SV1000SS is designed for spraying flux, urethane, paint, lubricants, and for coating and conformal coating and marking applications.



Operation

The valve is adjustable by turning the stroke-adjust control at the rear of the valve; this will tune the spray pattern. Coating and flow rate are controlled by the fluid pressure, needle stroke, distance from the valve to the work and the duration the valve is open.


Request a Quote

Models

SV1000SS: Spray Valve Stainless Steel

Features

Shot rate frequency of 200 cycles/min
Suitable for spraying paint, flux, urethane, and lubricants
Stainless Steel fluid body
Stroke adjustment to fine-tune spray area
Nozzle design prevents clogging
Designed for materials under 1000cps

Specifications

Operating air pressure 70-100 psi (4.8 - 6.9 bar)
Atomizing air pressure 1-30 psi (0.1-2.1 bar)
Fluid viscosity range Up to 1000 cps
Fluid pressure 1-100 psi (0.1-7 bar) material dependent
Operating frequency Over 200 cycles/min
Flow rate Up to 28 cc/min
Spray pattern Circular (conical spray)
Spray angle 12°
Nozzle diameter 0.028" (0.71 mm)
Operating air inlet 10-32 thread with push-in fitting for 1/4" tube
Atomizing air inlet 10-32 thread with push-in fitting for 1/4" tube
Material inlet 1/8" NPT with compression fitting for 1/4" tube
Weight 10.25 oz. (290 g)
