560548U-6N: Manual Barrel Loader 6 oz

Manual Barrel Loaders

The 560548U Series of manual barrel loaders will fill a barrel directly from a 6 oz, 12 oz, 20 oz, or 300 ml cartridge. Barrel loaders are an efficient method of transferring greases, epoxies, silicones, solder pastes, and other thixotropic materials into a disposable barrel. The barrel loaders can be used for timed filling when connected to a Fisnar automatic controller. Syringe barrel and piston sold separately.



Replacement Parts

  • 561105: 1/4” NPT Elbow
  • 5801451: Syringe Filling Adapter
  • 560710: Luer Lock Cap
  • 560546: 1/10 Gallon Nozzle Adapter
  • 561129: 1/10 Gallon Nozzle Adapter
  • 562317: Cartridge Adapter



Request a QuoteBuy at Ellsworth Adhesives

Models

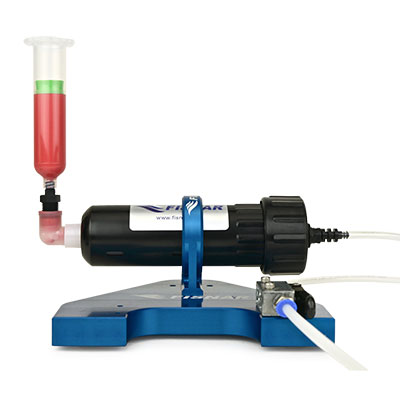

560548U-6N: Nylon Manual Barrel Loader 6 oz

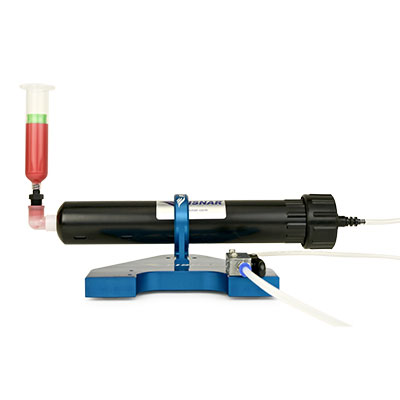

560548U-12N: Nylon Manual Barrel Loader 12 oz

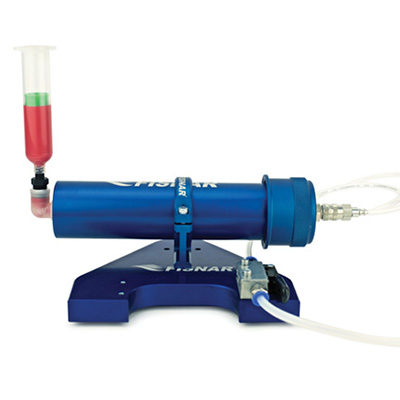

560548U-300: Metal Manual Barrel Loader 300 ml

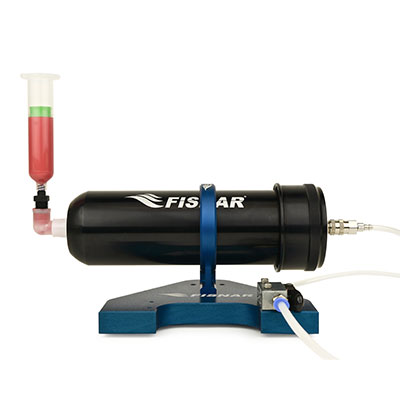

560548U-570: Metal Manual Barrel Loader 20 oz

Features

Loads barrels from 6 oz, 12 oz, 20 oz, and 300 ml cartridges
Connected to an air regulator and set to a pressure suitable for the material not exceeding 65 psi (46.68 bar)
Manual switch on base actuates air supply and pressurizes the cartridge to fill barrel
Internal air relief valve allows for decompression when trigger is released

Videos

Syringe Filling With Manual Barrel Loader - Fisnar

View Fisnar's Manual Barrel Loader fill a 30 cc syringe. Barrel loaders are an efficient method of transferring greases, epoxies, silicones, solder pastes, and other thixotropic materials into a disposable barrel.
