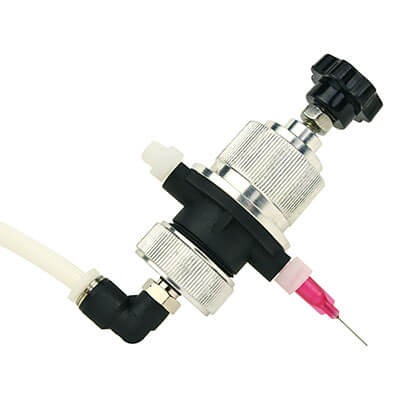

710PT-U Pinch Tube Dispensing Valve

710PT-U Pinch Tube Dispensing Valve

The 710PT-U Pinch Tube Dispensing Valve is engineered for precise control of low to medium viscosity liquids. The easy-to-use stroke control adjustment knob ensures accurate and repeatable dispense volumes.

The disposable pinch tube design allows for quick and easy servicing of the valve. Piston on/off actuation causes the pinch tube to open or close allowing material to flow through the valve.

The shot size or flow rate is determined by the degree of adjustment in releasing the closed (pinched) tube and by the valve control timer.

Request a QuoteBuy at Ellsworth Adhesives

Models

710PT-U: Pinch Tube Valve

Features

Disposable pinch tube and fluid lines
Suitable for low to medium viscosity fluids
Ideal for long pot life two component adhesives and cyanoacrylates
Easy to use and maintain

Specifications

Operating Air Pressure 60 - 75 psi
Material Delivery Pressure 100 psi max
Valve Body Nylon
Valve Shut-Off Piston Acetal
Valve Piston Aluminum
Valve Cylinder Cap Aluminum
Valve Flange Cap Aluminum
Valve Stroke Adjustment Knob Coated Steel
Valve Seals NBR
Wetted Part Materials Polyethylene
Material Inlet Luer Lock
Material Outlet Luer Lock
Mounting Hole Detail 1/4”- 28 UNC
Weight 114 g

Accessories

562054U Valve Stand
710PTU-RK Pinch Tube Valve Repair Kit

Videos

Dispensing 2 Component Material Using 710PT-U Pinch Tube Valve

Coin doming application with 2 component material using Fisnar's 710PT-U Pinch Tube Valve to dispense.
