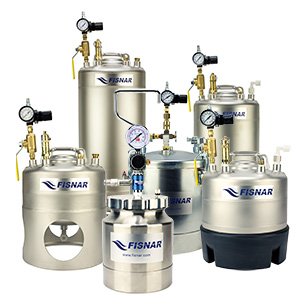

Reservoir Tanks are used to feed bulk fluids to a valve or dispensing pen. A variety of sizes and types is available, including bottom porting for very high viscosity liquids and top porting for low to medium viscosities. An “open top” style is used if liners are required to prevent the material from making contact with the sides of the container or if the fluid requires an agitator.

All reservoirs are supplied with associated airline, fluid line, regulator, and fittings.



Request a Quote

Standard Reservoir Tanks

Standard reservoir tanks are designed to maintain a steady fluid pressure for most dispensing applications, offering high chemical resistance and protecting against fluid contamination and evaporation.

ModelSizeStylePortedBaseASME RatingMax PressureRegulator GaugeMaterial Hose
IJ2601N-SS-SP2 qtbottletopmetalno50 psi0-60 psi1/4"
IJ2601N-SS2 qtbottletopmetalno50 psi0-60 psi1/4"
IJ-01001 galbottlebottom*metalyes125 psi0-100 psi3/8"
IJ-0100R1 galbottletoprubberyes125 psi0-100 psi1/4"
IJ-02002 galbottlebottom*metalyes125 psi0-100 psi3/8"
IJ-0200R2 galbottletoprubberyes125 psi0-100 psi1/4"
IJ-03005 galbottlebottom*metalyes125 psi0-100 psi3/8"
IJ-0300R5 galbottletoprubberyes125 psi0-100 psi1/4"
IJ-83Z-2112.8 galopen toptop**metalyes80 psi0-60 psi1/4"
IJ-83B-5002.8 galopen toptop**metalyes80 psi0-60 psi1/4"
IJ-83B-500-SP2.8 galopen toptop**metalyes80 psi0-60 psi1/4"
IJ-83B-500-BK2.8 galopen toptop**metalyes80 psi0-60 psi1/4"
IJ-83B-510-SP5 galopen toptop**metalyes80 psi0-60 psi1/4"



Included & Optional Parts
Part NumberDescription
560554Material shut off valve assembly for reservoirs marked *
IJ-83B-RLReplaceable liner for IJ-83B-500, IJ-83Z-211, IJ-83B-500-SP, IJ-83B-500-BK and IJ-83G-510-SP marked **
560934B-NONIJRegulator gauge (included)
560779Regulator (included)
560944O ring EPDM for bottle style reservoirs (included) - 560944 Viton and 560944T PTFE encapsulated Viton O ring optional



Stainless Steel Reservoir Tanks

Stainless Steel Reservoir Tanks
Stainless steel reservoir tanks are designed to maintain a steady fluid pressure for most dispensing applications, while providing excellent protection against corrosion or contamination.









Part NumberTypeMax Working Pressure (psi/bar)Capacity (L)Weight (kg)Body Inner and Outer Diameter (mm)Overall Height/Width (mm)Height Without Lid (mm)
FT1Small Pressure100/6.912100/106225/182150
FT1-AGPneumatic Agitated100/6.912100/106330/182150
FT2Small Pressure100/6.924100/106360/182300
FT2-AGPneumatic Agitated100/6.924100/106465/182300
FT5Small Pressure100/6.957149/155390/202321
FT5-AGPneumatic Agitated100/6.957149/155495/202321
FT10Small Pressure100/6.91014200/206484/237395
FT10-AGPneumatic Agitated100/6.91014200/206605/237395



Glass Reservoir Tanks

Glass Reservoir Tanks
In addition to metal reservoir tanks, Fisnar offers the glass PP300 see-through chamber for dispensing low viscosity liquids directly from bottles and up to 1lb jars. Regulated air pressure forces the liquid in the bottle up through a disposable tube to a connector, which can be interfaced to a valve or dispensing pen. This model is ideal for applications where it’s desirable to see the material without opening the chamber.

ModelSizeDimensionsIDInside HeightAir InputAir OutputWeight
PP300-GL-A1 gal6.00 x 6.00 x 11.00 in3.60 in (91.44 mm)8.70 in (220.98 mm)70 to 100 psi (5 to 7 bar)From regulator max 30 psi (2 bar)9.25 lbs (4.20 kg)



Included & Optional Parts
PartDescription
560607Dispense Tube 0.070" ID
560608Dispense Tube 0.100" ID (included upon request)
560609Luer Lock Fitting 0.070" ID
560610Luer Lock Fitting 0.100" ID (included upon request)
560611Gauge 0-30 psi
560612Knob Assembly
560612BBushing
560613Clamp for Tube
560614Reducer Nipple 1/4" 1/8" MPT
560615VO-ring (Viton)
560616Relief Valve
560618Reservoir Glass
560620Dip Tube
560571Regulator 0-25 psi
560792Flat Seal
580108Quick Connect 1/4" MPT
