DTD50 Multi-Ratio Dispense Tool

DTD50 Multi-Ratio Pneumatic Dispenser

Fisnar DTD50 is a pneumatically controlled dispense tool for precisely dispensing two component materials packaged into 50 ml A-style and B-style dual cartridges. It can be used with 1:1, 2:1, 4:1, and 10:1 mix ratios.

With its simple design and operation, accurate and repeatable fluid deposits are quickly and easily created when connected to a dispense controller.

Request a QuoteBuy at Ellsworth Adhesives

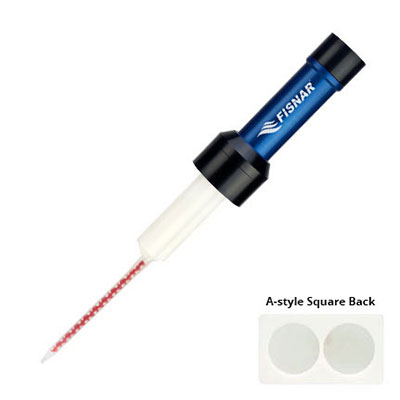

DTD50: 50 mL Dispenser Square Back

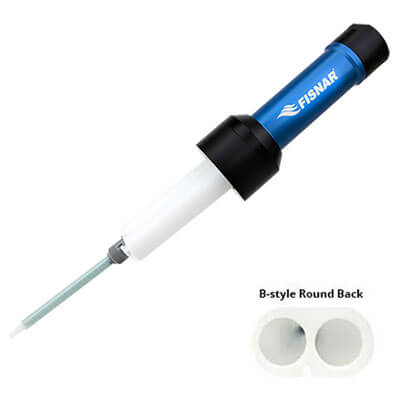

DTD50-RB: 50 mL Dispenser Round Back (S-Flange)


Simple and durable design
Light weight

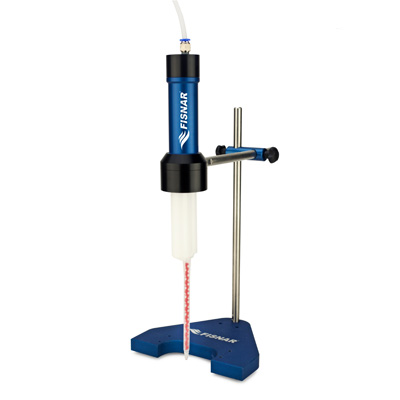

Can be used as a handheld device or mounted onto a stand or robot
Suitable for all ratio sizes including: 1:1, 2:1, 4:1, and 10:1
Additional storage location at rear to store pistons when not in use


Maximum Operating Pressure 100 psi (6.9 bar)
Dimensions 141 x 60 mm
Weight 280 g
Material Aluminum and acetal


Potting with DTD50 and Epoxy Encapsulant

Fisnar's DTD50 is a pneumatically controlled dispense tool for precise dispensing of two-part materials packaged in 50 mL dual cartridges.

Applying Thermally Conductive Adhesive onto LED Housing Using the DTD50 Dispenser

Application of a thermally conductive adhesive onto an LED housing using Fisnar's DTD50 Multi-Ratio Pneumatic Dispenser.
