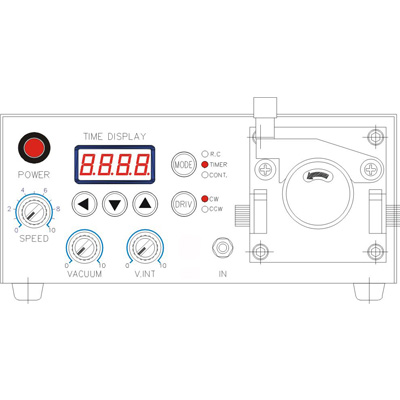

PPD-130 Dispenser

PPD-130 Peristaltic Pump Dispensing Controller

Peristaltic pump dispensers transfer low-viscosity liquids by pressure displacement applied to a turning rotor against a tube-carrying fluid.

The PPD-130 offers excellent features for air-free positive displacement dispensing of materials, such as cyanoacrylates, solvents, acids, and other low-viscosity materials.

Dispense outputs can be timed from 0.01 – 99.99 seconds with flow speeds from 0.01 – 6ml/min using PTFE tubing. The pump is bidirectional allowing snuff-back after discharge to prevent dripping.


Request a QuoteBuy at Ellsworth Adhesives

Models

PPD-130: Peristaltic Pump Dispenser

Features

Forward and reverse motion
Adjustable interval before reverse direction
Continuous or timer modes
Output signal to indicate end of cycle
Large segment digital LED display
Air-free dispensing
Instant reverse for snuff-back of liquid flow

Specifications

Cycle Rate 0.01 - 99.99 secs
Flow Speed 0.01 - 6ml / min
Rotor Speed Up to 120rpm
Dispense Pressure Over 105kg/cm2
I/O Connection for Remote Operation
Input Voltage 110 - 240 VAC - 50/60Hz
Dimensions (WxDxH) 7.18 x 3.20 x 6.73”
Weight 2.99kg
Standards CE Approved, RoHS Compliant

Accessories

562044U Peristaltic Pump Dispensing Valve Stand
562032-D Foot Pedal (optional)
