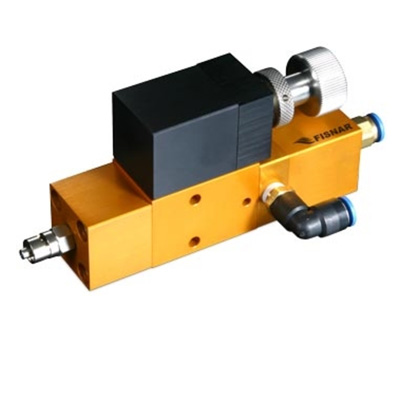

VDP100 Adjustable Positive Displacement Dispensing Valve

VDP100 Adjustable Positive Displacement Dispensing Valve

The VDP100 Adjustable Positive Displacement Dispensing Valve is designed for dispensing constant volume shots of low to medium viscosity materials within 1%, such as oil and grease. The VDP100 valve has a range up to 0.9cc.

The model VC1195N is a suitable 4-way valve controller for the VDP100 double acting metering valve.



4-Way Valve Operation

The valve is cycled by applying air pressure to the air ports. Low fluid pressure is required for low to medium viscosity materials. Shot sizes may be fine tuned by turning an adjustment control at the side of the valve.


Request a Quote

Models

VDP100: Positive displacement valve (only for use with pail pump)

Specifications

Operating air pressure 60-85 psi (4.1 - 5.9 bar)
Minimum Material Delivery Pressure 635psi
Maximum Material Delivery Pressure 1,138psi
Minimum shot size 0.1cc
Maximum shot size 0.9cc
Measuring type Precision cavity
Cylinder body AL hard anodized
Cap AL hard anodized
Packing - O-Ring Viton, PS ring
Operating air input M5xp0.8 - Ø6 air hose
Material Inlet 1/8" NPT
Material Outlet 1/8" NPT, Luer lock
Weight 450 g
