PDV1000 Precision Positive Displacement Auger Valve

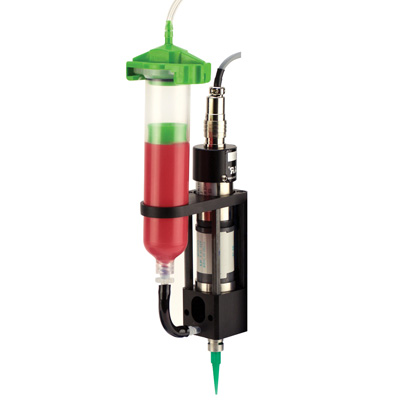

PDV1000 Precision Positive Displacement Auger Valves

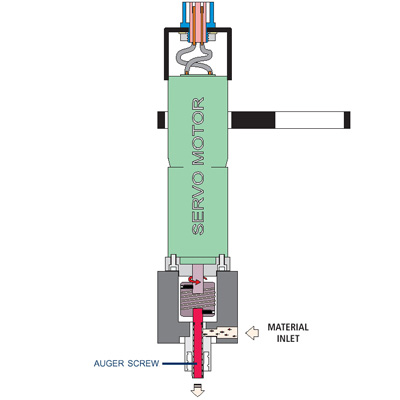

The PDV1000 Precision Positive Displacement Auger Valves are suitable for all medium to high viscosity paste, epoxy, solder paste and other filled material. Capable of dispensing a minimum shot size of 0.020″ (0.508mm), the PDV1000 uses an auger servo-motor driven screw.

The PDV1000 has zero dead space within the valve and can deliver accurate and repeatable dots and beads for any application, whether automated or manually operated. It is used in conjunction with the RVC900N controller. The auger screw is manufactured from hardened stainless steel.


Request a Quote

Models

PDV-1000-0308-LF: 8 pitch, 3cc barrel (16 & 32 pitch also available)
PDV-1000-0508-LF: 8 pitch, 5cc barrel (16 & 32 pitch also available)
PDV-1000-1008-LF: 8 pitch, 10cc barrel (16 & 32 pitch also available)
PDV-1000-3008-LF: 8 pitch, 30cc barrel (16 & 32 pitch also available)

Features

Solder-paste dispensing
Microshots 0.020" (0.508mm) 0.00003cc
Abrasive materials
Flexible coupling from motor to screw
No dead space – high repeatability

Specifications

Motor Voltage 24V
Motor 6-watt, 400RPM (no load)
Auger material Stainless Steel
Min. material viscosities 35,000 cps
Min shot size (filled materials) 0.020" (0.508 mm)
Gear box ratio 16
Weight 9 oz. (255 g)
