VP300: Poppet valve

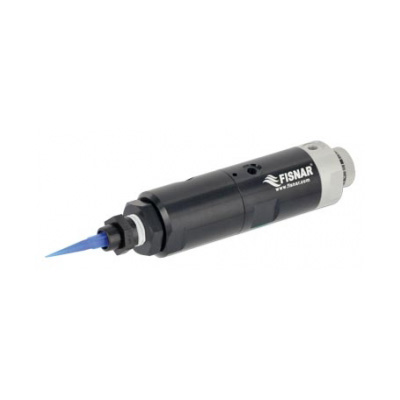

VP300 Pneumatic Poppet Dispensing Valve

The multipurpose VP300 Pneumatic Poppet Dispensing Valve is designed for dispensing low to mid-high viscosity materials, such as silicone, RTV, epoxy, rubber adhesive, grease, liquids containing filler, etc. A diaphragm located between driving parts and wetted parts increases the valve life and reduces valve maintenance.

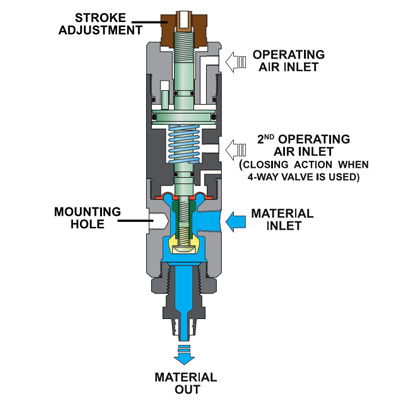

3-Way & 4-Way Valve Operation

When air pressure is applied to the valve, the valve seat will open and the material will be dispensed. Shot sizes may be fine tuned by turning the control knob at the top of the valve.

The VP300 valve has a suck-back effect that eliminates lumping at the end of the needle after dispensing.

The model DSP501N is a suitable controller for the VP300 valve. For faster actuation, the 4-way VC1195N valve controller is recommended.


Request a Quote

Models

VP300: Poppet valve

Features

Stroke adjustment to fine tune shot size
"Suck-back" effect
Seperated wetted parts
Suitable for filled materials
Chamber, CAP, and Wetted parts can be replaced with SUS303, AL, PPEK, Acteal

Specifications

Operating air pressure 60-85psi (4.1 - 5.9 bar)
Fluid delivery pressure 85psi (5.9 bar)
Flow rate Max. 2.4 l/min
Minimum shot size 0.05cc
Body AL (hard anodizing, black)
Piston SUS303
Piston Seal NBR
Cahmber, CAP AL (hard anodizing, black)
Diaphragm, valve seat UHMW-PE
O-Ring (CAP) Viton
Operating air input M5xP0.8
Material inlet 1/8" NPT
Material outlet 1/4" NPT / Luer lock
Mounting hole M5xP0.8
Weight 258g
