MV-0180 Mini Needle Dispensing Valve

MV-0180 Mini Needle Dispensing Valves

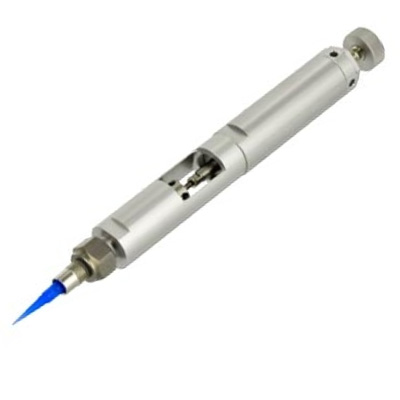

MV-0180 Mini Needle Dispensing Valves are designed for precision dispensing of all types of fluids from micro shots to moderate sized beads and dots. Its lightweight pencil-type grip makes the valve suitable for either hand-held or automatic applications. Shot sizes may be fine tuned by turning the adjustment knob at the top.


3-Way & 4-Way Valve Operation

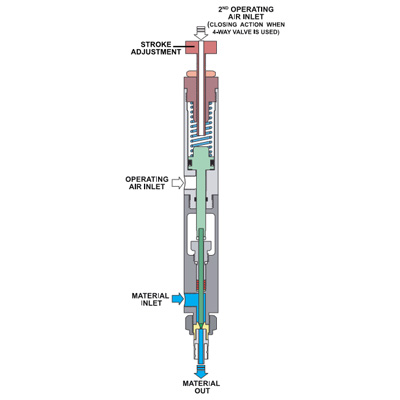

The valve is opened and closed by applying pressure to the air input port. Shot size and flow rate are controlled by the tip size, fluid pressure and the duration that the valve is open. Shot sizes may be fine tuned by turning the adjustment knob at the top of the valve. The controller model DC200 is a suitable controller but for faster actuation, the 4-way VC1195N valve controller can be used.

Request a Quote


MV-0180LF: Valve, aluminum body
MV-0180SS: Valve, 303 stainless steel body


Stainless and plastic fluid body options
Stroke adjustment to fine tune shot size
Comfortable lightweight design
Positive shut-off
Microshot deposits


Operating air pressure 60-85psi (4.1 - 5.9 bar)
Fluid delivery pressure Max. 120psi
Minimum shot size Micro dots
Body AL, SS, Plastic
Piston AL, SS, Plastic
Piston Seal Teflon
Wetted part materials AL, SS, Plastic
Operating air input 1/8" NPT
Material inlet 1/8" NPT
Material outlet 1/4"-28 / Luer lock
Weight 172.4 g


560536U Micro-Shot Dispensing Valve Stand
