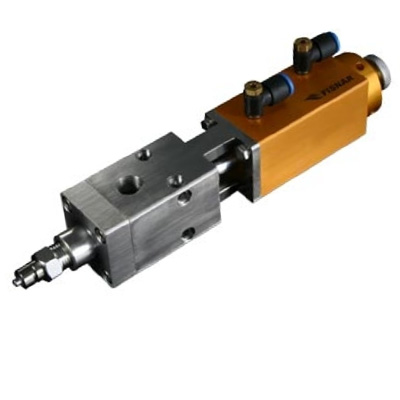

HP600 Small Shot High Pressure Needle Dispensing Valve

HP600 Small Shot High Pressure Needle Dispensing Valve

The HP600 Small Shot High Pressure Needle Dispensing Valve is a robust long-life solution for dispensing high viscosity materials such as silicone, RTV, sealant and grease.



4-Way Valve Operation

The HP600S is a balanced type “on/off” segmented high-pressure needle valves, which require a model VC1195N 4-way valve controller. Applying a minimum of 56 psi to the air inlet will retract the needle allowing material to flow. Switching the air signal on the controller will return the needle to its seated position closing the valve.


Request a Quote

Models

HP600S: High-pressure valve small shot

Features

High-pressure fluid input
Adjustable for shot size
4-way operation - quick shut off
Suitable for very high viscosity fluids
Replaceable seals

Specifications

Operating air pressure Max. 60-71psi (4.1 - 4.9 bar)
Fluid delivery pressure 2,133psi (147 bar)
Minimum shot size 0.01cc
Valve type Needle
Cylinder body, CAP AL (hard anodized)
Piston, Check body STS303
Chamber SUS303
CAP, CV body AL (hard coated)
Seals Acetal Teflon
Operating air input M5xP0.8, 4mm fitting ø6 OD air hose
Material inlet 1/4" NPT
Material outlet 1/4" NPT Luer lock (male)
Weight 950 g
