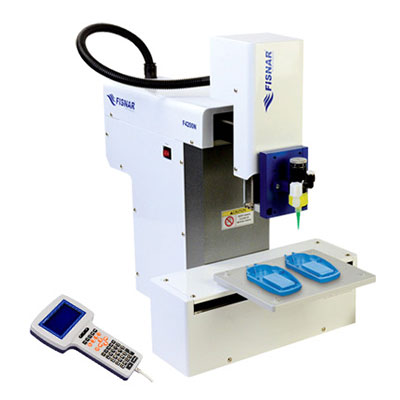

The F4200N.2 is a compact and ergonomically designed benchtop robot created to support most general dispensing applications requiring a high performance standard and consistent repeatable results.
Programming the F4200N.2 is simple with the included teach pendant and optional tip alignment.
Using the industry’s market-leading software, the teach pendant provides users with step-by-step instructions resulting in a sophisticated dispensing operation in minutes. The F4200N.2 robot can be supplied individually or as a complete stand-alone machine system by integrating into a safety enclosure.
Request a QuoteRequest a Quote
| F4200N.2: 3-axis Robot - 200 x 200 x 50 mm Work Area |
| Repeatability of 0.02 mm |
| Small footprint for bench space reduction |
| Step and repeat functionality |
| USB port for data transfer and back up |
| Optional PC programming |
| Working Area X/Y/Z (mm) | 200 x 200 x 50 mm |
| Maximum Speed (X&Y/Z) | 500 / 200 mm / secs |
| Work Load | 3 kg |
| Tool Load-Z-Axis | 2 kg |
| Repeatability | +/- 0.02 mm / axis |
| Resolution | 0.001 mm / axis |
| Motion Control | PTP & CP |
| Drive System | Micro stepping motors |
| Data Memory | 1 - 100 programs | 50,000 points / program |
| I/O Signals | 8 Inputs / 8 Outputs |
| External Interface | USB / RS232 |
| Power Supply | Auto-switching AC 100 - 240 VAC, 320 watts |
| Dimensions (W/D/H) | 324 x 499 x 480 mm (13 x 20 x 19") |
| Weight | 17 kg (37 lb) |
| Approvals | CE, RoHS, WEE |
