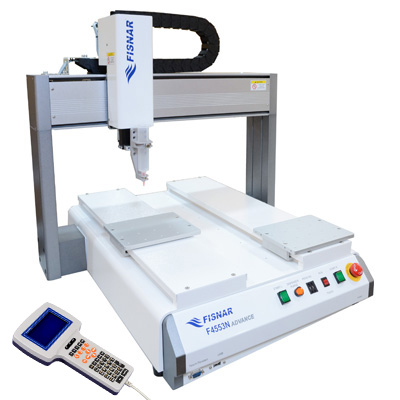

F4553N with Teach Pendant
The F4000 ADVANCE dual table benchtop robots are designed to ensure precise fluid placement and positioning.
The unique dual-table design allows for high speed manufacturing due to the elimination of part changeover and loading time. This is made possible with the removal of finished parts and the loading of new parts on the mixture of one table, while the other table is being processed by the robot.
Furthermore, the dual-table design provides users the option to carry out two different dispensing routines sequentially, thus eliminating the requirement for batch production.
The F4000 ADVANCE can be supplied individually or as a complete stand-alone machine system by integrating into a safety enclosure.
|F4553N: 3-axis Robot - 500 x 500 x 100 mm Work Area|
|F4554N: 4-axis Robot - 500 x 500 x 150 mm Work Area|
|Unique dual-table design for high speed manufacturing|
|USB port for data transfer and back-up|
|Program selector switch and fluid purge button|
|True 3D interpolation and simultaneous motion control|
|Modular connectivity for easy installation of accessories at any time such as the CCD vision kit, tip-alignment, or height sensor|
|Remote start/stop box|
|Maximum Working Area X/Y/Z||F4553N: 500 x 500 x 100 mm (20 x 20 x 4")
F4554N: 500 x 500 x 150 mm (20 x 20 x 6")
|Maximum Working Area (R)||F4554N: +/- 720°|
|Maximum Speed (X&Y/Z)||800 / 320 mm / sec (31 / 13” / sec)|
|Maximum Speed (R)||F4554N: 720° / sec|
|Work Load||10 kg (22 lb)|
|Tool Load||5 kg (11 lb)|
|Repeatability||+/- 0.008 mm|
|Motion Control||PTP & CP|
|Drive System||3-phase micro stepping motors|
|Data Memory||1 - 100 programs | 1 - 50,000 points / program|
|I/O Signals||8 inputs / 8 outputs|
|External Interface||USB / RS232|
|Power Supply||Auto-switching AC 100 - 240 VAC, 320 watts|
|Dimensions (W/D/H)||F4553N: 740 x 717 x 659 mm (30 x 28 x 26")
F4554N: 740 x 717 x 916 mm (30 x 28 x 36")
|Weight||F4553N: 62.5 kg (138 lb)
F4554N: 66.5 kg (147 lb)
|Approvals||CE, RoHS, WEE|
