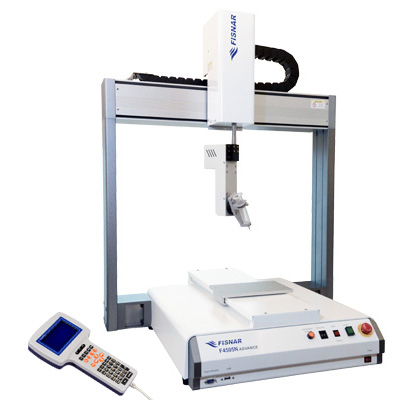

F4505N with Teach Pendant
The F4000 ADVANCE 5-axis benchtop robot provides both a rotational vertical (B) axis and horizontal (U) axis for applying adhesives and sealants on curved, vertical, or difficult to reach applications.
The F4000 ADVANCE proprietary robot software is user friendly and enables the creation of complex dispensing routines (dots, lines, circles, arcs, and fills) that can be set up and operational in just minutes.
The 5-axis simultaneous positioning is also ideal for dispensing around ledges, lips, and inside channels with form-in-place gasketing materials or staking/ruggedizing electrical components on a PCB with a silicone RTV material. The F4000 Advance can be supplied individually or as a complete standalone machine system by integrating into a safety enclosure.
Request a QuoteRequest a Quote
| F4505N: 5-axis Robot - 500 x 500 x 150 mm Work Area |
| Integral tip position adjustment routine |
| USB port for data transfer and back-up |
| Program selector switch and fluid purge button |
| True 3D interpolation and simultaneous motion control |
| Modular connectivity for easy installation of accessories at any time such as the CCD vision kit, tip-alignment, or height sensor |
| Aux-Axis |
| I/O expansion |
| Remote start/stop box |
| Maximum Working Area X/Y/Z | 500 x 500 x 150 mm |
| Max Working Area (R) | +/- 720° |
| Max Working Area (W) | +/- 70° |
| Maximum Speed (X&Y/Z) | 800 / 320 mm / sec (31 / 13” / sec) |
| Maximum Speed (R) | 720° / sec |
| Maximum Speed (W) | 360° / sec |
| Work Load | 10 kg (22 lb) |
| Tool Load | 1 kg (2.2 lb) |
| Repeatability | +/- 0.008 mm |
| Motion Control | PTP & CP |
| Drive System | 3-phase micro stepping motors |
| Data Memory | 1 - 99 programs | 1 - 50,000 points / program |
| I/O Signals | 8 inputs / 8 outputs |
| External Interface | USB / RS232 |
| Power Supply | Auto-switching AC 100 - 240 VAC, 320 watts |
| Dimensions (W/D/H) | 860 x 752 x 1,065 mm (34 x 30 x 42") |
| Weight | 69.5 kg (153 lb) |
| Approvals | CE, RoHS, WEE |
RTV Ruggedizing with F4505 5-Axis Robot - Fisnar
Demonstration of RTV ruggedizing with Fisnar's F4505 ADVANCE Series 5-Axis Robot. It provides both rotational vertical axis and horizontal axis for applying adhesives and sealants on curved, vertical, or difficult to reach applications.
Gasketing with 5-Axis Robot and CR300 Metal Cartridge Retainer
Demonstration of gasketing using Fisnar's CR300 Metal Cartridge Retainer attached to a 5-Axis Robot. This high-grade anodized alloy retainer and cap ensure a safe and comfortable dispensing pressure up to 100 psi. Attaching to a 5-Axis robot allows for both vertical and horizontal rotation for applying adhesives and sealants.
