The F1300N provides a simple and efficient method of dispensing a circular pattern on areas that can sometimes be difficult to access. The Z-axis tilt is easily and quickly adjusted for controlled rotary dispensing at a fixed angle, onto a vertical wall within a cylindrical part or on an outside wall or top surface.
Alternatively, the machine can be configured into an index mode, whereby multiple parts can be positioned equally dispensed apart from each other in a single circular pattern. When initiated, the machine will dispense onto a component in a fixed position, and when complete will rotate at a fixed indexing angle in order to dispense onto the next part.
The fully programmable intuitive touchscreen user display allows dispense parameters (i.e. dispense angle, pre and post dispense time and rotation speed) and machine settings to be quickly changed and simultaneously viewed on the home screen.
Request a QuoteRequest a Quote

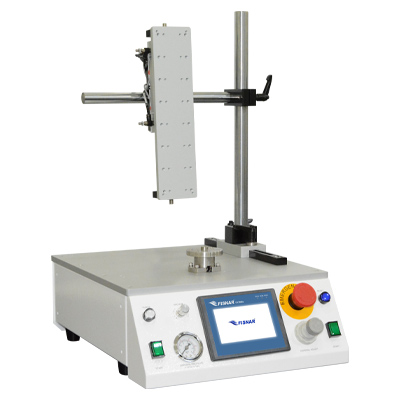

|F1300N.2: Rotary Dispensing Table|
|Multilingual touch screen LCD display for easy setup and operation|
|0 - 100 psi fluid pressure regulator & gauge|
|9 programmable memory slots|
|3 operation modes (Standard, Pulse & Index)|
|6 channel I/O circuit|
|Password protected operator lockout|
|Dispense cycle counter & limit|
|Auto Cycle function|
|Worldwide compatible power supply|
|Working Area (Diameter)||300 mm (12")|
|Cycle Initiation||Manual or Automatic|
|Z-Axis Cylinder Travel||100 mm (4”)|
|Rotation Speed||0 - 60rpm|
|Air Input||70 - 100 psi (5 - 7 bar)|
|Air Output||1 - 100 psi (5 - 7 bar)|
|Dimensions (W/D/H)||350 x 482 x 575 mm (13.8 x 19 x 22.6")|
|Work Load||2 kg (4.4 lb)|
|Tool Load||10 kg (22.0 lb)|
|Weight||15.5 kg (34.2 lb)|
