F8800N Model

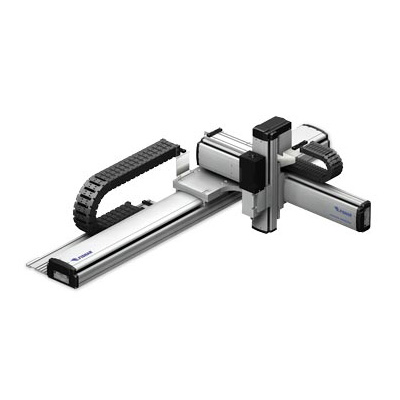

F8000N Series Assembly Line Robots

The F8000N series are servo-driven ball-screw design cantilever robots. A specially ruggedized aluminum structure prevents flexing and vibration while maintaining functionality, providing a precision multiple axis robot ideal for conveyor fed applications. Many projects also require all moving axes to be above the workstation, the F8000N series provides that capability.



Request a Quote

Models

F8800N: 800 x 600mm work area 3-axis robot
F8804N: 800 x 600mm work area 4-axis robot

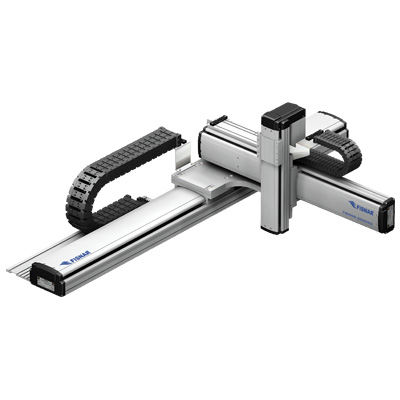

F8100N: 1000 x 800mm work area 3-axis robot
F8104N: 1000 x 800mm work area 4-axis robot

Features

AC servo motors with ball screw design
Available in three and four axis models
Repeatability of 0.02mm
Highly rigid frame structure
Open access design for in-line operation
100 programs on board

Specifications

X/Y/Z {R} Work Area (mm) F8800N, F8804N: 800 / 600 / 200 {+/- 360°}
F8100N, F8104N: 1000 / 800 / 200 {+/- 360°}
Maximum Tool Load {R} 5 kg. {2 kg.}
Max. Speed X&Y / Z, {R} 1000 / 500 (mm/sec) {360°/sec}
Repeatability {R} +/- 0.02 mm/axis {+/- 0.058°}
Resolution {R} 0.001 mm {+/- 0.001°}
Data Memory 100 Programs / 20,000 step / 20,000 points
Drive System AC Servo Motors
Motion Control Point to point & continuous path
Teaching Method Teach Pendant
I/O Signals System I/O: 24 inputs / 6 outputs
User I/O: 32 inputs / 32 outputs
External Interface RS232
Power Supply 220 - 240 VAC
Dimensions (WxDxH) inches F8800N, F8804N: 43.70 x 54.33 x 22.24
F8100N, F8104N: 56.10 x 64.17 x 24.72
Weight F8800N, F8804N: 159 lbs., 179 lbs.
F8100N, F8104N: 254 lbs., 273 lbs.
