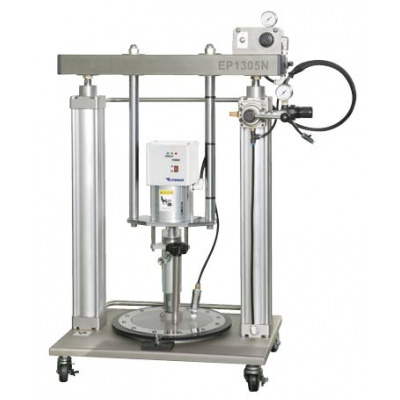

EP1305N Pail Extruder System
The EP1305N is designed for dispensing 5 gallon pails of medium to high viscosity fluid. Ideal for silicones and grease. Systems are rated at 15:1 and provide a maximum of 996 psi regulated material pressure.
The extruder pump body is fitted with a follower plate that seals and follows the material as the level drops to wipe the sides of the pail clean, limiting waste. The fluid is pressure-fed by reinforced hoses to a valve that is actuated by a valve controller.
The EP1305 utilizes a low-pulse pump design suitable for automatic production dispensing applications, when used with a fluid regulator. These applications require a constant supply of air-free material. Air bubbles and material voids, caused by handling or decanting high viscosity fluids, are prevented. Supplied standard with 20 kg follower plate.
|EP1305N: Pump Electric 20 kg (5 Gallon 15:1 220 VAC)|
|Material delivered air free|
|Air ram assist to help drive material and adjustable air ram pressure|
|Electrical extruder motor|
|Simple load mechanism for easy cleaning|
|Size||500 x 400 x 1,200 mm (19.68 x 15.74 x 47.24”)|
|Height Adjustment||755 mm min-1200 mm max (229.72” min x 47.24” max)|
|Power Input for Sensing||220 VAC, 50 - 60 Hz, 20 watts|
|Air Input Pressure||30 - 100 psi|
|Maximum Output Pressure||996 psi max|
|Fluid Viscosity Range||10,000 - 600,000 cps|
|Minimum Volume/Stroke||0.01 cc/shot|
|Max Operating Pressure||50 °C|
|Air Inlet/Fluid Outlet Size||1/4” NPT (f)|
|Wetted Parts||304 and 17-4 pH Stainless Steel, PTFE, Viton®, PEEK|
|Weight||24 kg (52.8 lb)|
|EP1305WP||Follower Plate for 20 kg (5 gallon pail)|
|EP1300LPS||Low Level Sensor|
|651780-A3A-B||Fluid Regulator SS 3,000 psi|
|EP1415K||Fluid Regulator Install Kit with Gauge and Fittings|
