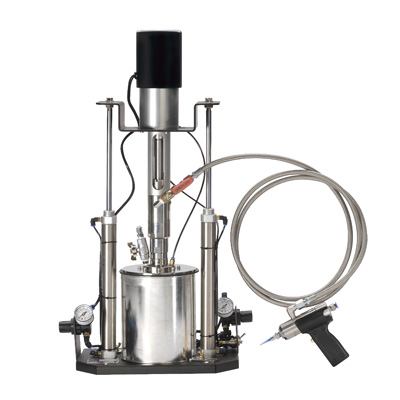

DA35 Autocan Extruder System
The DA35 extrudes medium to high viscosity materials under pressure directly from a pre-filled can. This system is suitable for automatic and semiautomatic controlled dispensing applications, which require a constant supply of air-free material.
The extruder pump body is fitted with a follower plate that seals and follows the material as the level drops to wipe the sides of the can clean, limiting waste. Supplied as standard with a NBR wiper seal fitted. Hose, valve, handle, and FKM wiper seal sold separately.
Request a QuoteRequest a Quote
| DA35-1KG-US: Autocan Pump 110 VAC |
| DA35-3KG-US: Autocan Pump 110 VAC |
| DA35-1KG-EU: Autocan Pump 220 VAC |
| DA35-3KG-EU: Autocan Pump 220 VAC |
| DA35-1KG-UK: Autocan Pump 220 VAC |
| DA35-3KG-UK: Autocan Pump 220 VAC |
| Prevents air bubbles and material voids |
| Air ram assist to help drive material |
| Simple load mechanism provides easy cleaning |
| Easy hook up for automatic systems |
| Low noise electric extruder model |
| Integrated low level alarm and warning light |
| Size | 215 x 440 mm (8.46 x 17.32”) |
| Height Adjustment | 550 mm min - 720 mm max (21.65” min - 28.35” max) |
| Power Input for Sensing | 110 - 220 VAC, 50 - 60 Hz |
| Air Input Pressure | 30 - 100 psi |
| Maximum Output Pressure | 850 psi |
| Fluid Viscosity Range | 30,000 - 300,000 cps |
| Ratio | 8.5 |
| Volume/Stroke | 5 cc |
| Max Pump Speed | 60rpm |
| Air Inlet/Fluid Outlet Size | 1/4” NPT (f) |
| Wetted Parts | PTFE, Viton®, and PEEK seals |
| Weight | 12.73 kg (28 lb) |
| 651780-A3A-B | Fluid Regulator SS 3,000 psi |
| EP1415K | Fluid Regulator Install Kit with Gauge Fittings |
| DA35-1KG | Follower Plate 1 kg |
| DA35-3KG | Follower Plate 3 kg |
| 1300060-1KG-NBR | Follower Wiper Seal NBR (117 mm O.D.) |
| 1300060-3KG-NBR | Follower Wiper Seal NBR (168 mm O.D.) |
| 1300060-1KG-FKM | Follower Wiper Seal FKM (117 mm O.D.) |
| 1300060-3KG-FKM | Follower Wiper Seal FKM (168 mm O.D.) |
