FPG-25 Pneumatic Cartridge Dispenser

FPG Pneumatic Cartridge Dispensers

Fisnar FPG-25, FPG-60, FPG-80, FPG-120, FPG-300, and FPG-570 pneumatic cartridge dispensers are designed to dispense 2.5, 6, 8, 12 oz, 1/10th gallon, and 20 oz cartridges. Lightweight and durable, it includes a pneumatic applicator, adjustable pressure control, and a 2.5 oz, 6 oz, 8 oz, 12 oz, 1/10th gallon, or 20 oz nylon retaining sleeve that threads directly into the retainer cap to lock in the cartridge for minimal movement and a tight seal. The FPG-300 includes a 300 mL metal retaining sleeve. Max 85 psi rated. FPG-25, FPG-60, FPG-80, FPG-120, and FPG-570 is for use with Techcon, Semco, and EFD-style 2.5, 6, 8, 12, and 20 oz cartridges (not included, sold separately). FPG-300 is compatible with 1/10th gallon plastic and metal caulking type cartridges (not includedin kit, sold separately).



Request a QuoteBuy at Ellsworth Adhesives

Models

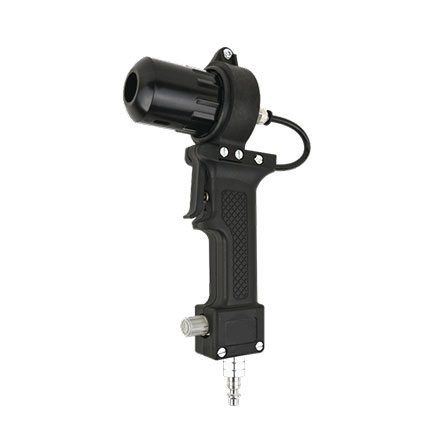

FPG-25: Pneumatic Cartridge Dispenser for 2.5 oz Cartridges

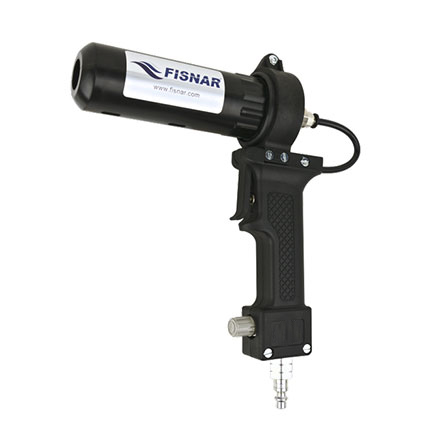

FPG-60: Pneumatic Cartridge Dispenser for 6 oz Cartridges

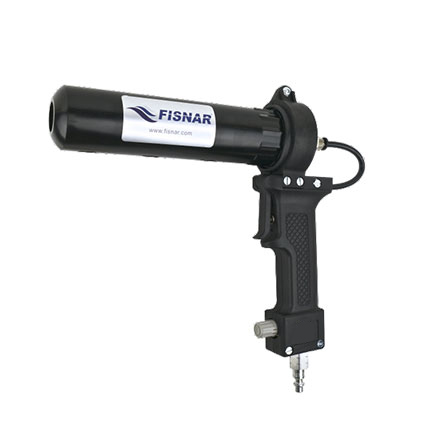

FPG-80: Pneumatic Cartridge Dispenser for 8 oz Cartridges

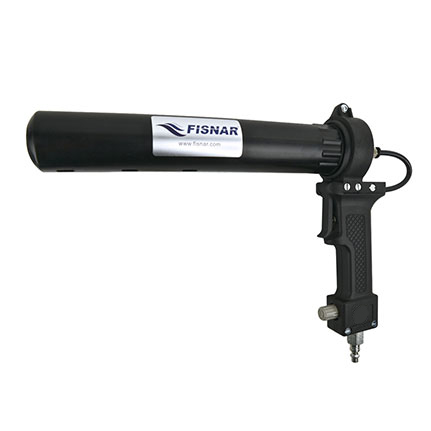

FPG-120: Pneumatic Cartridge Dispenser for 12 oz Cartridges
FPG-300: Pneumatic Cartridge Dispenser for 1/10 gallon or 300 ml Cartridges
FPG-570: Pneumatic Cartridge Dispenser for 20 oz Cartridges

Features

FPG-25, FPG-60, FPG-80, FPG-120, and FPG-570 is for use with Techcon, Semco, and EFD-style 2.5, 6, 8, 12, and 20 oz cartridges
FPG-300 is compatible with 1/10th gallon plastic and metal caulking type cartridges
Handle assembly made of polyamide 6 (PA6) with 30 % fiberglass and aluminum alloy
Equipped with an integrated and adjustable pressure control (0.5-6 bar).
Designed to be lightweight and durable
Max 85 psi rated
