700PTPCW: Dispenser Pen

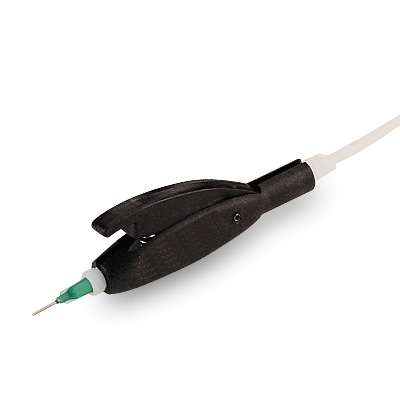

700PTPCW Pinch Tube Pen Hand Dispenser

The 700PTPCW Pinch Tube Pens are ideal applicators for manually dispensing continuous beads or applying microdots of low viscosity liquids such as solvents and cyanoacrylates.

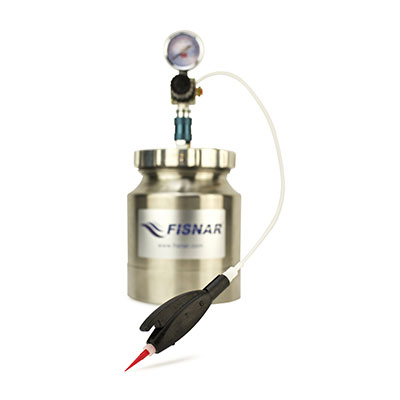

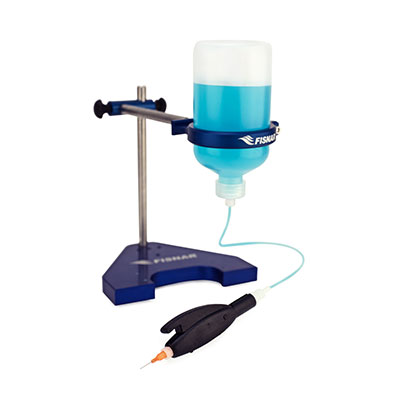

The disposable pinch tube is the only part of the pen that is in contact with the material and discarded when contaminated. The pinch tube pen can be connected via a wide range of interchangeable fittings to gravity fed or pressurized reservoirs.


Request a QuoteBuy at Ellsworth Adhesives

Models

700PTPCW: Dispenser Pen
700PTPCW-BLK: Dispenser Pen with Black Tubing for UV Material

Features

Disposable pinch tubes minimize maintenance
Designed for low viscosity fluids
Ideal for glues, solvents, and cyanoacrylates
Reservoir ordered separately

Accessories

5601390 Luer Lock Adapter - White
580045A Pinch Tube (I.D. 0.10” x 4.10” long) - Clear
580047A-07-24 Fluid Line PE (I.D. 0.07” x 24” long) - Clear
580047A-10-18 Fluid Line PE (I.D. 0.10” x 18” long) - Clear
580047A-10-24 Fluid Line PE (0.10” x 24” long) - Clear
580047A-10-36 Fluid Line PE (I.D. 0.10” x 36” long) - Clear
580045A-BLK Pinch Tube (I.D. 0.10” x 4.10” long) - Black
580047A-BLK-07-24 Fluid Line PE (I.D. 0.07” x 24” long) - Black
580047A-BLK-10-24 Fluid Line PE (I.D. 0.10” x 24” long) - Black
580047A-BLK-10-36 Fluid Line PE (I.D. 0.10” x 36” long) - Black
