The DC100 Digital Dispensing Controller, with its versatile design, makes it perfectly suited for a wide variety of dispensing applications; from microdot deposits, lines, to large potting and filling.

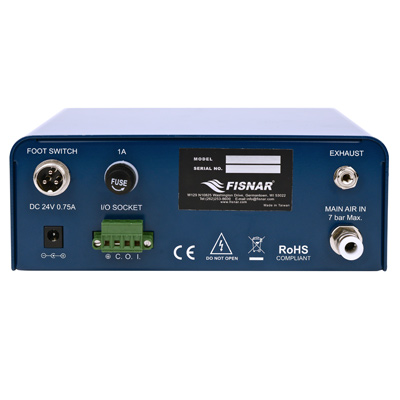

This new advancement in dispensing technology allows the user more control over their dispensing applications. Alarms can be set to notify the user when material life has ended or fluctuations in dispensing pressure have occurred. The user friendly programming allows for up to 10 programs to be saved and 5 different dispensing modes to be used. An I/O connection allows for easy integration into pre existing manufacturing lines. Lockable programs can allow the operator to use the DC100 without fear of mistakenly modifying programs.
Syringe, piston, receiver head, and other consumables sold separately, see item QK-CSK (Controller Starter Kit) for a variety of sizes available for testing (3cc, 5cc, 10cc, 30/55cc).
|DC100: Dispenser 110/220V|
|Adjustable air output and vacuum with digital display|
|Air input tolerance can be set for consistent pressure|
|Can be locked to keep programs from being modified|
|Alarm can be set for when material life has ended|
|Auto purge to prevent premature curing of material|
|Alarm can be set for pressure and vacuum fluctuation|
|Dispense counter for tracking completed dispense cycles|
|Calibration for both pressure and vacuum|
|Multiple dispense modes for easy use in many applications|
|Cycle Rate||600+ Cycles per minute|
|Timer||0.008 to 9999 seconds|
|Programs||10 memory slots|
|Input AC to power supply||100-240 VAC - 50/60Hz|
|Output DC from power supply||24 VDC - 0.75 Amp|
|Air Input||100 psi maximum|
|Air Output||0-100 psi|
|Operating Temperature||50 - 140° F|
|Relative Humidity||20 - 90% (no condensation)|
|Dimension (WxDxH)||7.09" x 7.68" x 3.15"|
|Standards||CE approved, RoHS Compliant|
|Purge Mode||Dispenses for as long as activated|
|Teach Mode||Allows the user to record a dispense time|
|Timed Mode||Dispense at a fixed time interval|
|Time+ Mode||Allows operator to add time to a shot after a set amount of cycles|
|INT Mode||Allows the user to stop a programmed dispense time early if needed|
Fisnar DC100 & DC200 Digital Dispensing Controllers allow users to maintain precise control over dispensing fluids such as adhesives, silicones, cyanoacrylates, and more. Both systems are user-friendly and offer a variety of dispensing modes including purge mode, teach mode, timed mode, time+ mode, and interrupt mode. Create accurate dots, lines, patterns or potting & filling.
