DB815-SB: Foot Dispenser with suck-back

DB815 Manual Dispensing Controller

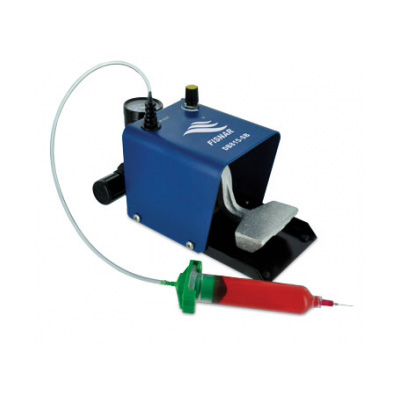

The DB815 Manual Dispensing Controller is a basic air-powered system that is floor mounted and foot actuated. Includes a three-way air valve and built in air regulator, ideal for non-critical dispensing operations. As long as the foot pedal is depressed, fluid will be dispensed.

The unit is suitable for all types of fluids. The model with suck-back option ensures that low viscosity liquids do not drip.



Request a Quote

Models

DB815: Foot Dispenser
DB815-SB: Foot Dispenser with suck-back

Features

Economical and simple to use
Wide range of applications
Suck-Back feature ensures no dripping
Heavy duty design

Specifications

Size DB815 4.50" x 8.50 "x 4.88" (11.43 x 21.59 x 12.40cm)
Size DB815-SB 4.50" x 8.50 "x 5.38" (11.43 x 21.59 x 13.66cm)
Cycle Continuously maintained by user
Foot pedal Air valve integral in unit
Air input 70 to 100 psi (5 to 7 bar)
Air output 1-100 psi (0.1 7 bar)
