VMP30H: Mini Poppet Valve

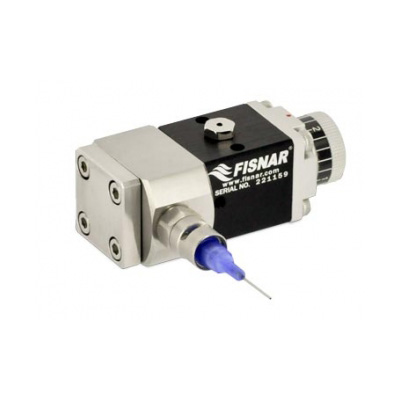

VMP30H Mini Pneumatic Poppet Dispensing Valve

The multipurpose VMP30H Mini Pneumatic Poppet Dispensing Valve is designed for dispensing low to mid-high viscosity materials, such as silicone, RTV, epoxy, rubber adhesive, grease and filled materials. The poppet design minimizes surface area and friction between the valve piston and the material, making it ideal for filled materials and extending the life of the valve seals.


3-Way & 4-Way Valve Operation

When air pressure is applied to the valve, the valve seat will open and the material will be dispensed. Shot sizes may be fine tuned by turning the control knob at the top of the valve. The valve has a suck-back effect, which draws material back into the fluid body at the end of the dispensing cycle. This eliminates lumping at the end of the needle after dispensing.

The model DSP501N is a suitable controller for the VMP30H valve. For faster actuation, the 4-way VC1195N valve controller is recommended.

Request a Quote


VMP30H: Mini Poppet valve


Stroke adjustment to fine tune shot size
"Suck-back" effect
Separated wetted parts
Suitable for filled materials
Chamber, CAP, and Wetted Parts can be replaced with SUS303, AL, PPEK, Acteal


Operating air pressure 50-85psi (3.4 - 5.9 bar)
Fluid delivery pressure Max. 85psi (5.9 bar)
Flow rate Max. 1.2 l/min
Minimum shot size 0.01cc
Body AL (hard anodizing, black)
Piston SUS303
Piston Seal NBR
Chamber, CAP SUS303
Diaphragm, Valve Seat UHMW-PE
O-Ring (CAP) Viton
Operating air input M5xP0.8
Material inlet 1/8" NPT
Material outlet Luer lock
Weight 162 g


562235U Mini Pneumatic Poppet Dispensing Valve Stand
