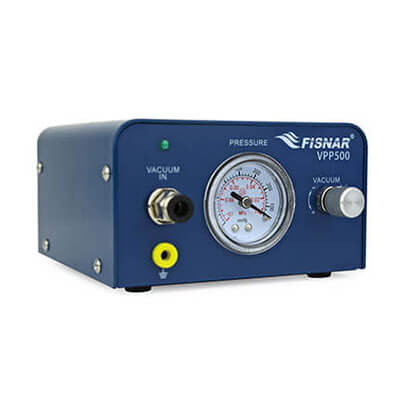

VPP500 Vacuum Pickup System (Side View)

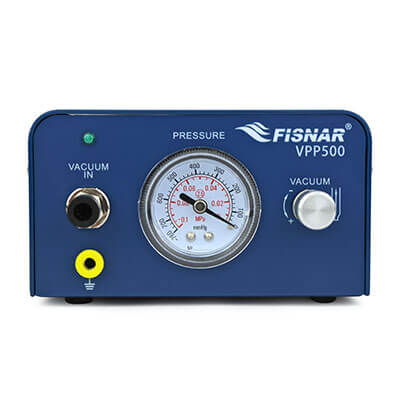

VPP500 Electro-Pneumatic Vacuum Pickup System

The VPP500 Vacuum Pickup System is designed for safely and efficiently picking up and placing delicate lightweight components with ease. Unlike conventional tweezers, the use of a rubber suction cup prevents possible accidental damage or contamination to the component during the lifting and positioning process.

Its foot pedal operated electro-pneumatic design minimizes air usage and eliminates the exhausted noise, which is emitted when not in use. Each unit comes with one of the 580046NH-ESD pickup pens included.

Request a QuoteBuy at Ellsworth Adhesives


VPP500: Electro-Pneumatic Vacuum Pickup System


Simple setup and operation
Adjustable vacuum control
Vacuum pressure readout
Foot pedal controlled
Lightweight ergonomic ESD safe pickup pen included
A selection of ESD safe tips and vacuum cups included to ensure compatibility with differing applications
Compliant for use in ESD safe environments
Prevents damage and contamination to delicate components
Vacuum gauge allows the vacuum pressure to be precisely set and monitored

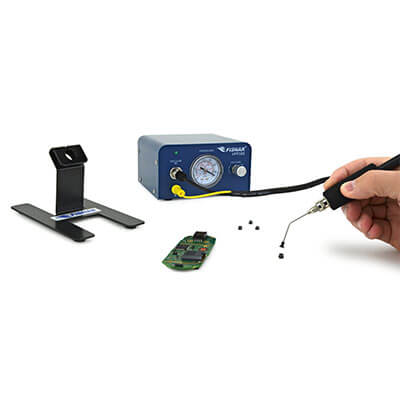

Stand included for safe storage of vacuum pick-up pen when not in use


Dimensions 5.12” x 5.04” x 3.00” (130 x 128 x 76mm)
Weight 1.49 lbs (0.68kg)

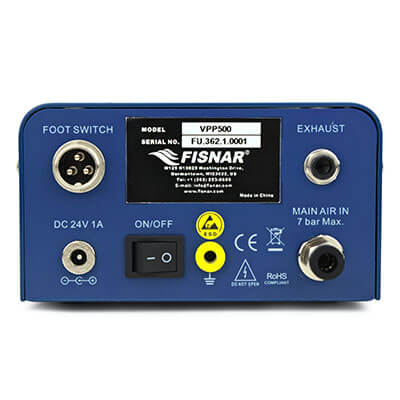

Input AC to Power Supply 100 - 240 VAC, 50/60 Hz
Output DC from Power Supply 24VDC - 1.0 Amp
Relative Humidity 20 - 90% (No condensation)
Operating Temperature 50 - 104 °F (10 - 40 °C)
Air Input 100psi (7 bar) max
Vacuum Up to 400 mm-Hg (15.75in.-Hg)
Maximum Pickup Weight Up to 4.4oz (125g)
Standards CE Approved, RoHS Compliant


580046NH Vacuum Pickup Pen (Non-ESD)
580046NH-ESD Vacuum Pickup Pen (ESD)
ESD-WSK-US ESD Workstation Kit (US-110V)
ESD-WSK-EU ESD Workstation Kit (EU-230V)
ESD-WSK-UK ESD Workstation Kit (UK-230V)
