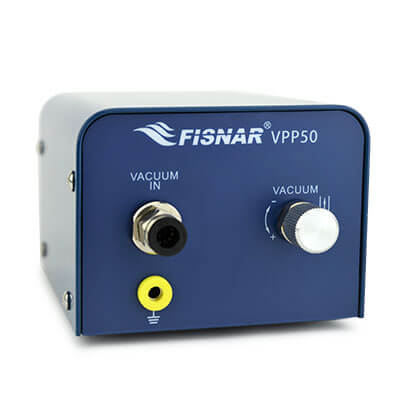

VPP50 Vacuum Pickup System (Side View)

VPP50 Pneumatic Vacuum Pickup System

The VPP50 Vacuum Pickup System is designed for safely and efficiently picking up and placing delicate lightweight components with ease. Unlike conventional tweezers, the use of a rubber suction cup prevents possible accidental damage or contamination to the component during the lifting and positioning process.

Its simple pneumatic only control and easy to use finger actuated design allows the system to be used in workspace environments, where electrical supply is unavailable or not permitted. Each unit comes with one of the 580046-ESD pickup pens included.

Request a QuoteBuy at Ellsworth Adhesives


VPP50: Pneumatic Vacuum Pickup System


Simple setup and operation

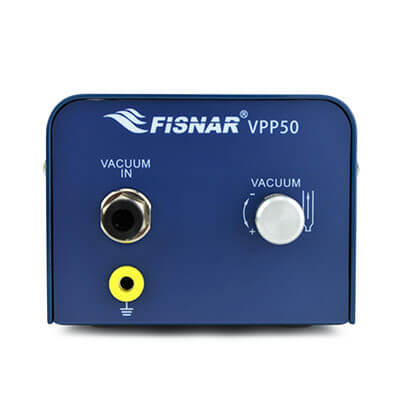

Adjustable vacuum control
Pneumatic only system
Manually finger actuated
Lightweight ergonomic ESD safe pickup pen included
Includes a selection of ESD safe tips and vacuum cups included to ensure compatibility with differing applications
Compliant for use in ESD safe environment
Prevents damage and contamination to delicate components

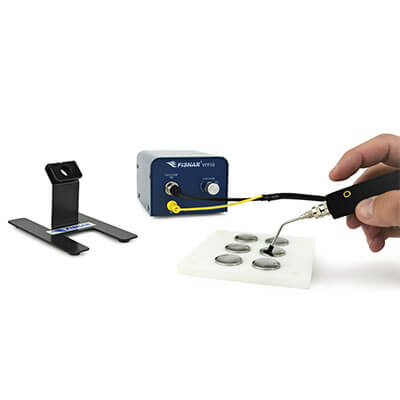

Stand included for safe storage of vacuum pick-up pen when not in use


Dimensions 3.78” x 5.04” x 3.00” (96 x 128 x 76mm)
Weight 0.84 lbs (0.38kg)
Relative Humidity 20 - 90% (No condensation)
Operating Temperature 50 - 104°F (10 - 40°C)

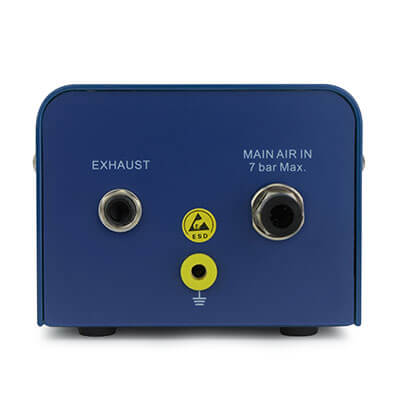

Air Input 100psi (7 bar) max
Vacuum Up to 400 mm-Hg (15.75in.-Hg)
Maximum Pickup Weight Up to 4.4oz (125g)
Standards CE Approved, RoHS Compliant


580046 Vacuum Pickup Pen (Non-ESD)
580046-ESD Vacuum Pickup Pen (ESD)
ESD-WSK-US ESD Workstation Kit (US-110V)
ESD-WSK-EU ESD Workstation Kit (EU-230V)
ESD-WSK-UK ESD Workstation Kit (EU-230V)
