PZ-CON Piezoelectric Valve Controller

PZ-CON Piezoelectric Valve Controller

The PZ-CON piezoelectric valve controller can be configured to independently control up to 4 PZ1200 valves. The pre-fitted driver module(s) uses an amplifier to generate the correct signal wave to actuate and control the piezo elements within the valve ensuring precise dispense control.

The built-in memory allows up to 10 individual programs to be created containing a pulse time and sequencing times & frequency. A built in USB connection also allows for programs to be remotely stored.

Each controller is supplied with three different user adjustable pulse definition profiles, which is critical when jetting fluid materials in order to minimize fluid build-up on valve seat and unwanted satellites on substrate.



Request a QuoteRequest a Quote

Models

PZ-CON-1: Piezo Valve Controller - 1 Channel
PZ-CON-2: Piezo Valve Controller - 2 Channel
PZ-CON-3: Piezo Valve Controller - 3 Channel
PZ-CON-4: Piezo Valve Controller - 4 Channel

Features

Temperature control
Operator lockout
Valve purge screen
10 user programmable memories
Trigger or continuous operation mode
User friendly, 7” touchscreen display
User configurable I/O
Control up to 4 valves
Remote program backup
Programmable pulse definition profiles

Specifications

Time Range 0.84 - 999ms
Programs 10 memory slots
I/O 3 inputs / 5 outputs

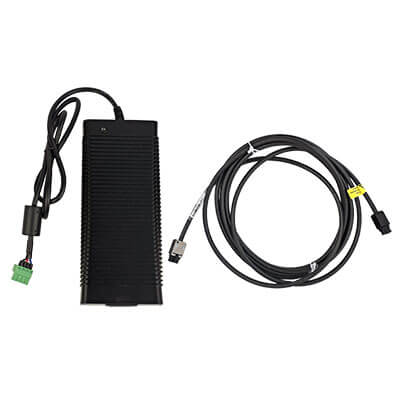

Input AC to Power Supply 96 - 264 VAC, 47 - 63 Hz
Output AC from Power Supply 24 V / 11.67 A

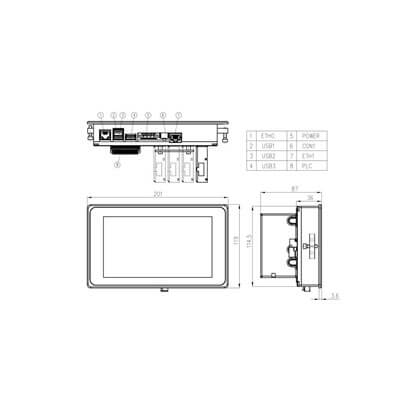

Dimensions (WxDxH) 201 x 119 x 32.5 mm (8 x 4.7 x 1.3”)
Weight 800 g (1.76 lb)
Standards CE Approved, RoHS Compliant
