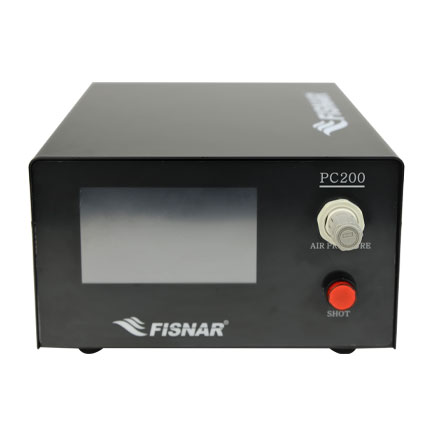

PC200 Front

PC200 Progressive Cavity Valve Controller

An advanced valve controller suitable for use with all Fisnar PC I-Series and V-series progressive cavity valves.

The Graphic User Interface (GUI) provides simple touch-screen programming and operation for both one and two component dispense applications.

The 4” HMI display allows all dispense parameters to be independently programmed on one single screen. An integral pressure regulator and digital pressure gauge ensure easy system installation.

Connecting cable required for operation. See accessories.

Models

PC200: Progressive Cavity Valve Controller

Features

Manual and timed dispense modes
Digital pressure output display
Operator lockout
Adjustable forward and reverse speed
Controllable suck-back delay dwell time
User friendly touch-screen interface (GUI)
Cleaning routine for valve maintenance
Auto-purge (anti-gel function)
Remote program select function

Specifications

Time Range 0.01 - 500s
Programs 200 memory slots
Voltage 100 - 240 VAC, 50/60 Hz
I/O 7 inputs / 7 outputs / RS485
Air Input 70 - 100 psi
Air Output 1 - 100 psi
Dimensions (WxDxH) 203.2 x 279.4 x 114.3 mm (8 x 11 x 4.5")
Weight 1,700 g (3.75 lb)
Standards CE Approved, RoHS Compliant

Accessories

5601912 Valve Connecting Cable 10 ft (3 m)
5601913 Valve Connecting Cable 30 ft (9.1 m)
